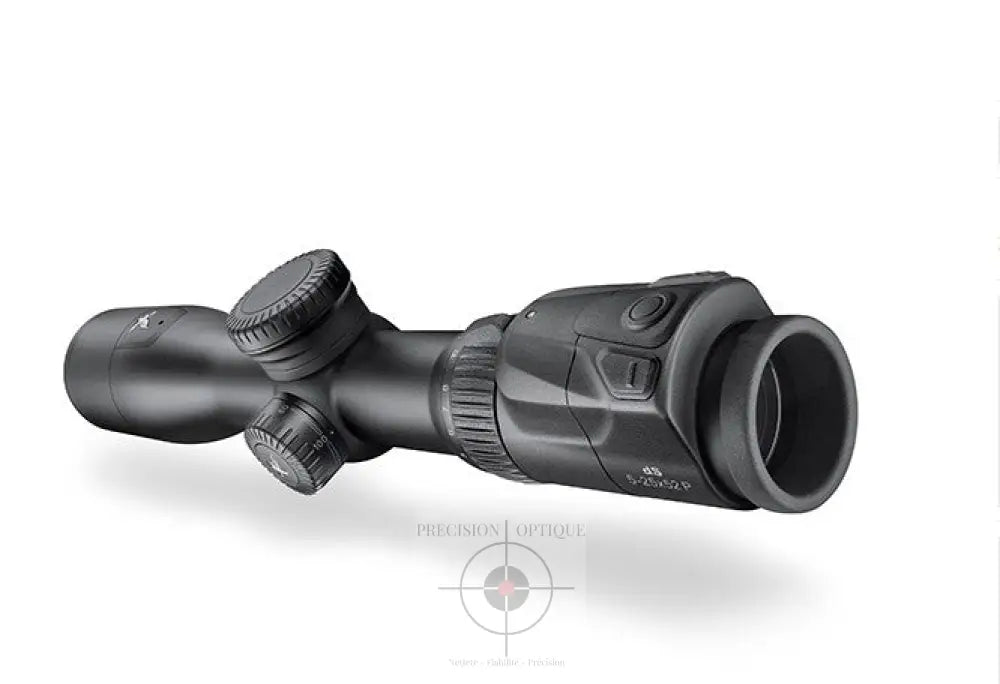

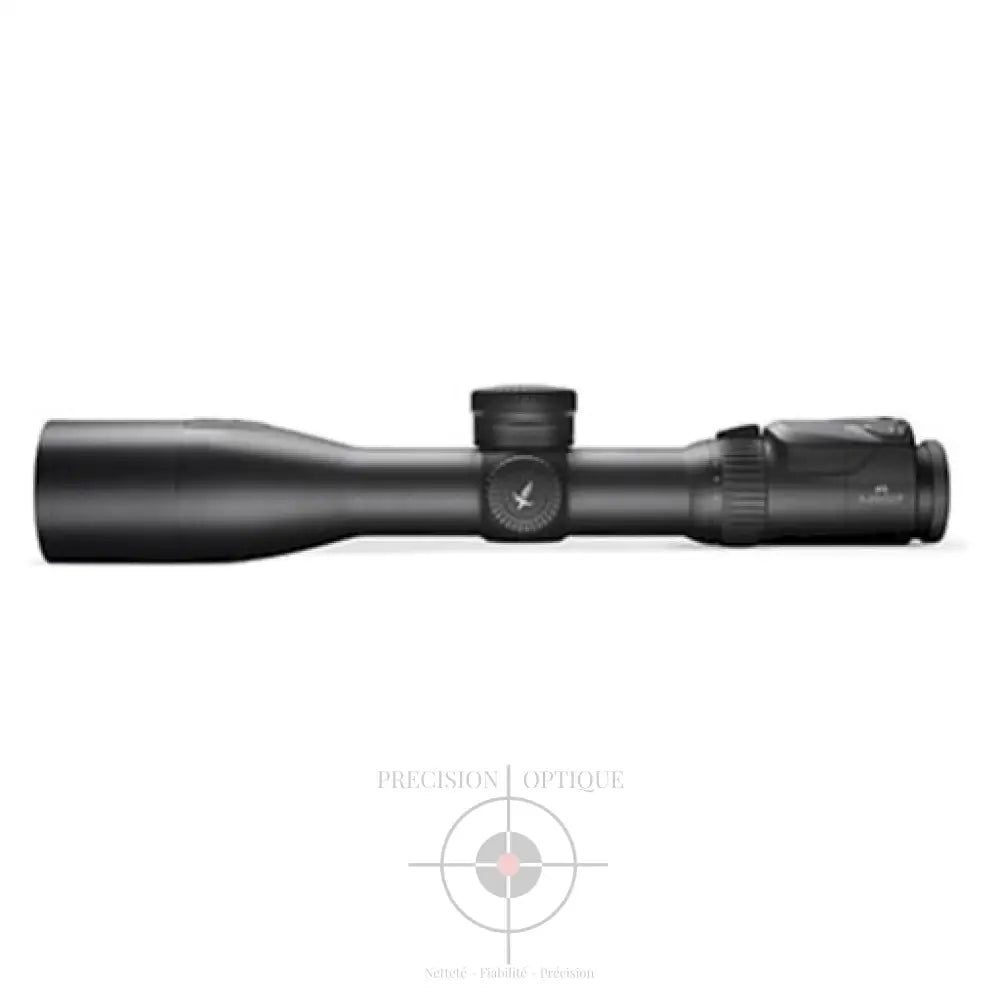

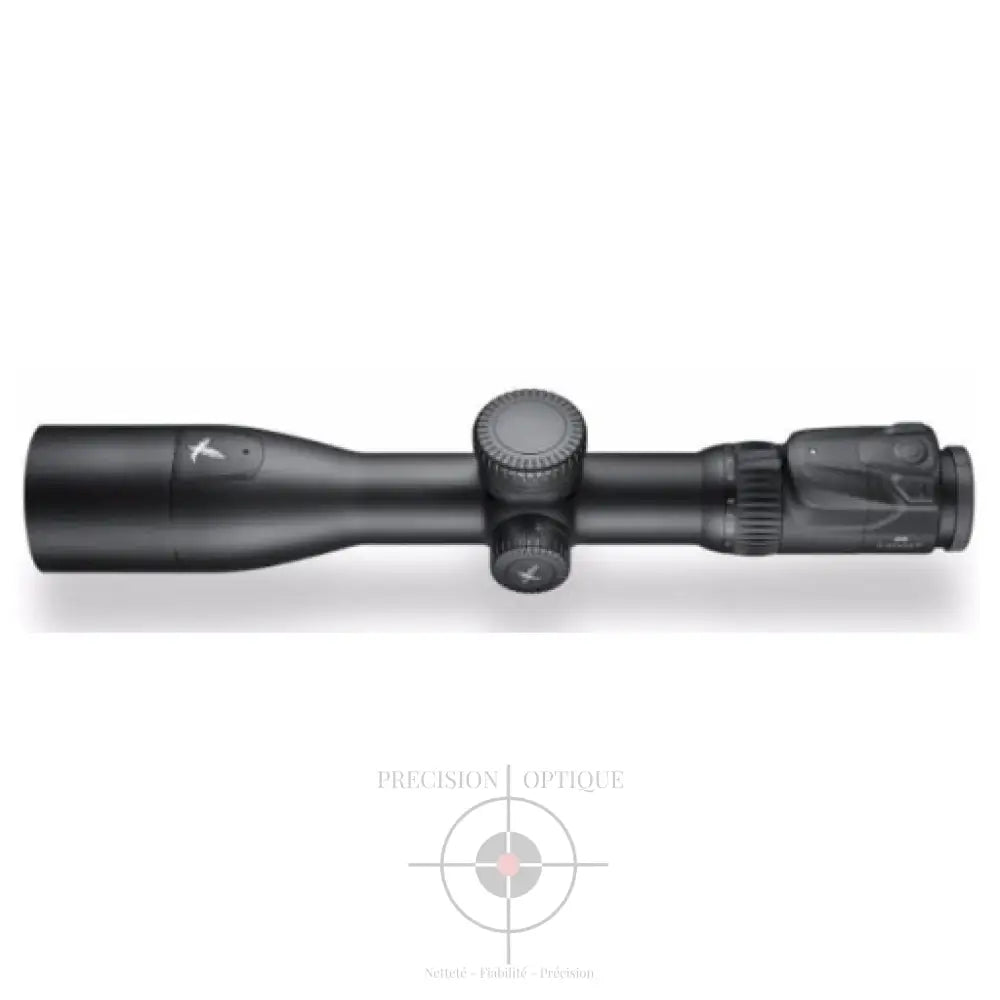

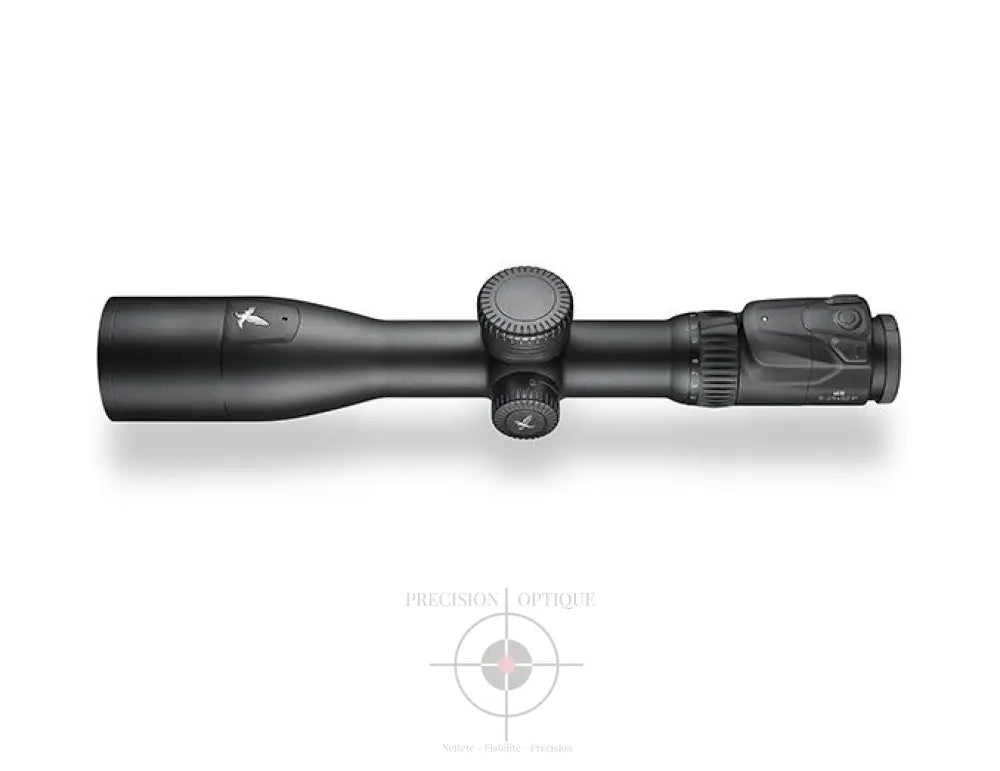

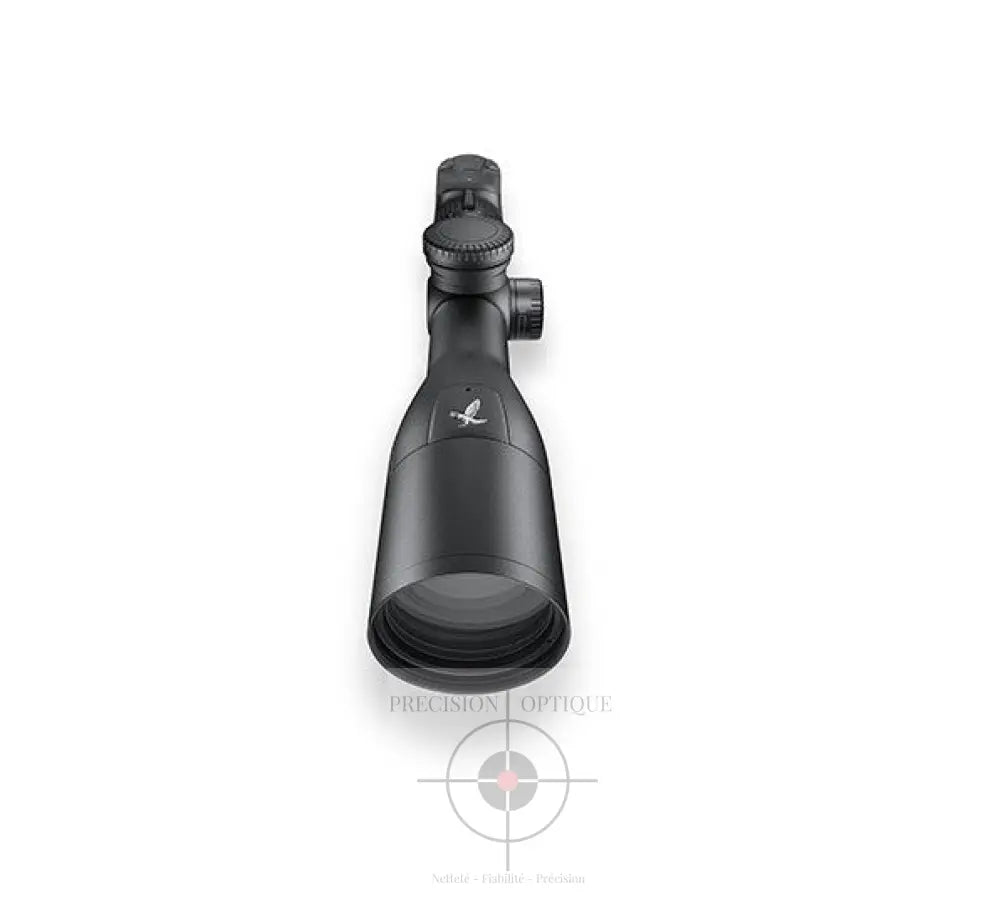

Swarovski dS Rifle Scope: Intelligent Technology for Unmatched Precision

The Swarovski dS riflescope is equipped with integrated intelligent technology to provide optimum accuracy and advanced assistance to hunters. This scope projects real-time information into the field of view, ensuring distraction-free aiming and accurate shooting.

Technical characteristics

Magnification and Optics

• Magnification : 5-25x
• Effective Lens Diameter : 48-52 mm
• Exit Pupil Diameter : 9.6-2.1 mm
• Exit Pupillary Distance : 95 mm
• Light Transmission : 83%
• Twilight factor : 14.1-36.0 (ISO 14132-1)

Field of Vision

• Actual Field of Vision : 7.3-1.5m/100m
• Actual Field of View (degrees) : 4.2-0.84°
• Apparent Field of Vision : 21.5°

Settings

• Diopter adjustment : -3 to +2 dpt
• Impact Point Correction per Click : 7 mm/100 m
• Max. Adjustment Range :
  • Elevation and Drift : 1.2 / 0.7 m / 100 m
• Parallax Correction : 50m to infinity

Dimensions and Weight

• Length : 403 mm
• Weight : 1090 g
• Central Tube Diameter : 40 mm

Environmental Conditions

• Operating Temperature : -10 to +55°C
• Storage temperature : -30 to +70 °C
• Waterproofness : Immersion up to 4 m (inert gas filling)

Lighting

• Brightness Levels : 64
• Operating Time : 500x

Display

• Display Type : Monochrome LCoS
• Measuring Range : 30-1375 m
• Measuring accuracy : +/- 1 m
• Angle measurement : +/- 60°
• Max. Aim Point Correction : 1024 m

Smart Technology

• dS Configurator App : Allows you to configure the custom ballistic curve and transfer the data to the scope via Bluetooth.
• Compatible Operating Systems : iOS from version 8.1, Android from version 4.4 KitKat

Assembly

• Lens Filter Thread : M 63x0.75
• Mounting Types : Ring or Rail

Reticle Available

• 4A-I

Benefits of the Swarovski dS

Advanced Technology for Maximum Accuracy

• Head-Up Display : Projects relevant information in real-time, without distraction.
• Auto Aim Point : Automatically calculates the correct aim point based on distance, pressure, temperature and firing angle.

Personalization and Adaptability

• dS Configurator App : Facilitates the entry of custom ballistic data, ensuring optimum accuracy for every firearm and ammunition combination.
• Lateral Parallax Correction : Ensures flawless image quality at all distances.

Robustness and Reliability

• Waterproofing and Extended Operating Temperature : Designed to withstand extreme conditions, ensuring reliable performance in all circumstances.

Lighting and Visibility

• Variable Brightness Levels : Allows for optimal visibility regardless of light conditions.

Conclusion

The Swarovski dS riflescope is a high-tech solution for hunters who demand precision and efficiency. With its head-up display, automatic aiming point and advanced customization capabilities, it offers unmatched assistance to ensure the success of every hunt.
